PP1812-28 Shrink Tunnel

$6,100.00

PP1808-28 Shrink Tunnel with 18"W x 8"H x 28"L chamberis a great general purpose shrink tunnel that can be used for a wide variety of applications. Can be used with shrink bands, neck bands, full body sleeves, used with shrink film, or can be used as a drying or curing tunnel.

PP1808-28 Shrink Tunnel with 18"W x 8"H x 28"L chamberis a great general purpose shrink tunnel that can be used for a wide variety of applications. Can be used with shrink bands, neck bands, full body sleeves, used with shrink film, or can be used as a drying or curing tunnel.

Teflon Mesh Belt Kit Teflon Mesh Belt Kit Teflon Mesh Belt Kit Teflon Mesh Belt Kit Teflon Mesh Belt Kit Teflon Mesh Belt Kit
Teflon Mesh Belt Kit
$475.00
Machine Model:

Fully Re-Circulating Air Chamber

  • Live Roller Rod Conveyor

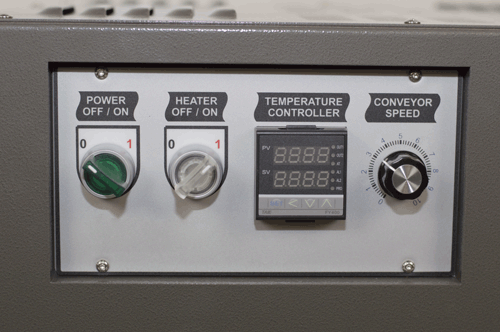

  • Digital Temperature Control 0-400°

  • Adjustable Air Velocity Control

  • State-of-the-Art AC Variable Speed Drive 0-75 FPM

  • Chromed Conveyor Rollers and Shaft (No Rust)

  • Automatic Tunnel Cool Down with Shut Off

  • 1/2 HP Blower Motor

  • Sealed Bearings on Drive and Idler Shafts

  • Chamber Size 18”W x 8”H x 28”L

  • Quietest Tunnel on the Market

  • Heats up to 300° F in less than 15 minutes

  • Thermal Overload Protection on All Motors

  • Locking Casters

  • Adjustable Leveling Pads 32” - 36.5”

  • Anti-Jam Safety Features on Conveyor

  • 7.5 KW Heater Bank

  • 12 ft Power Cord

  • 2 year warranty on electrical parts

Chamber: 30 ”L x 16 ”W x 6 ”H
Power: 220 volts - 10 amps - single phase
Machine dimensions: 35.5" L x 26" W x 60" H

You Might Also Like

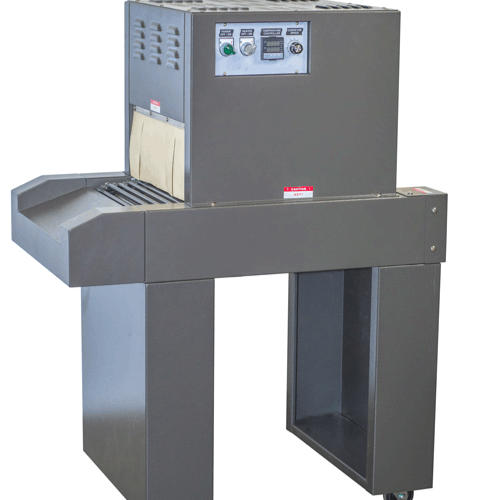

PP1606-20
